Description

The CTC (Conprove Test Center) testing platform is a powerful tool that encompasses a series of functionalities for carrying out tests at the secondary and primary levels.

There are millions of lines of code to make your job easier.

Regarding tests at the secondary level, the platform includes several automatic software for testing protection functions, such as: Differential (87), Harmonic Restriction, Distance (21), Power Swing Block (68), Out Of Step (78), Overcurrent (50/51), Directional Overcurrent (67), Timing (25), VoltsPHz (24), Over (59) and Undervoltage (27), among many others. Together with the software for testing protective functions, the platform includes software dedicated to the measurement of meters, power quality analyzer and transducers.

In addition to all the aforementioned applications, the platform offers other resources that aim to facilitate both testing and obtaining results. Among these resources, we can highlight that:

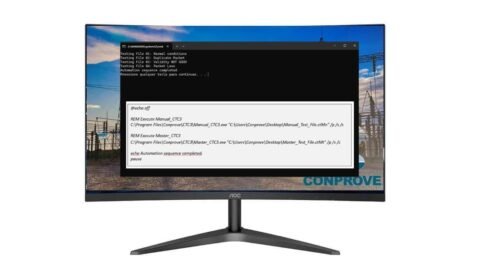

It is possible to create automated routines with the Test Plan software, where the user defines test sequences that will be executed autonomously.
All software performs automatic exports of reports of the tests carried out, containing all the information of the tests, as well as the evaluations carried out.
Customization of the graphical interface of the software by the user is allowed, according to his color preferences, default language, among many other definitions.

When it comes to tests at the primary level, the platform includes software with an extremely intuitive interface, including schematics with all the connections to be made in each of the tests. Among the tests made possible, we can highlight: TTR (Transformer Turns Ratio) single-phase or three-phase, burden, winding resistance, contact resistance, saturation curve, polarity check, insulation tests, circuit breaker oscillography, among others.
