Power Quality Analyzer Testing

High-Precision Solutions for Power Quality Analyzer Testing

The quality of electrical energy supplied to consumers is one of the key factors for the performance and durability of electronic equipment. To ensure that distortion levels, imbalance, and other parameters remain within acceptable limits, the use of power quality analyzers—devices responsible for monitoring and analyzing energy quality—is essential.

The reliability of these analyzers directly depends on the accuracy with which they are tested and calibrated. Therefore, it is crucial to use equipment capable of generating complex, controlled signals with a high degree of fidelity. This is where Conprove stands out as the ideal partner for companies, laboratories, and research centers, offering state-of-the-art universal testers specially developed to validate and calibrate analyzers safely and accurately.

The Importance of Testing Power Quality Analyzers

Power quality analyzers are designed to measure and record parameters such as:

  • Total Harmonic Distortion (THD)
  • Flicker
  • Voltage unbalance
  • Frequency oscillations
  • Transients
  • Voltage sags and interruptions
  • Harmonic and interharmonic content

These parameters are essential for identifying disturbances that may compromise the performance of electrical installations or damage sensitive equipment. To ensure reliable analysis, analyzers must undergo testing with controlled reference signals that simulate real-world grid conditions.

Conprove Solutions for Analyzer Testing

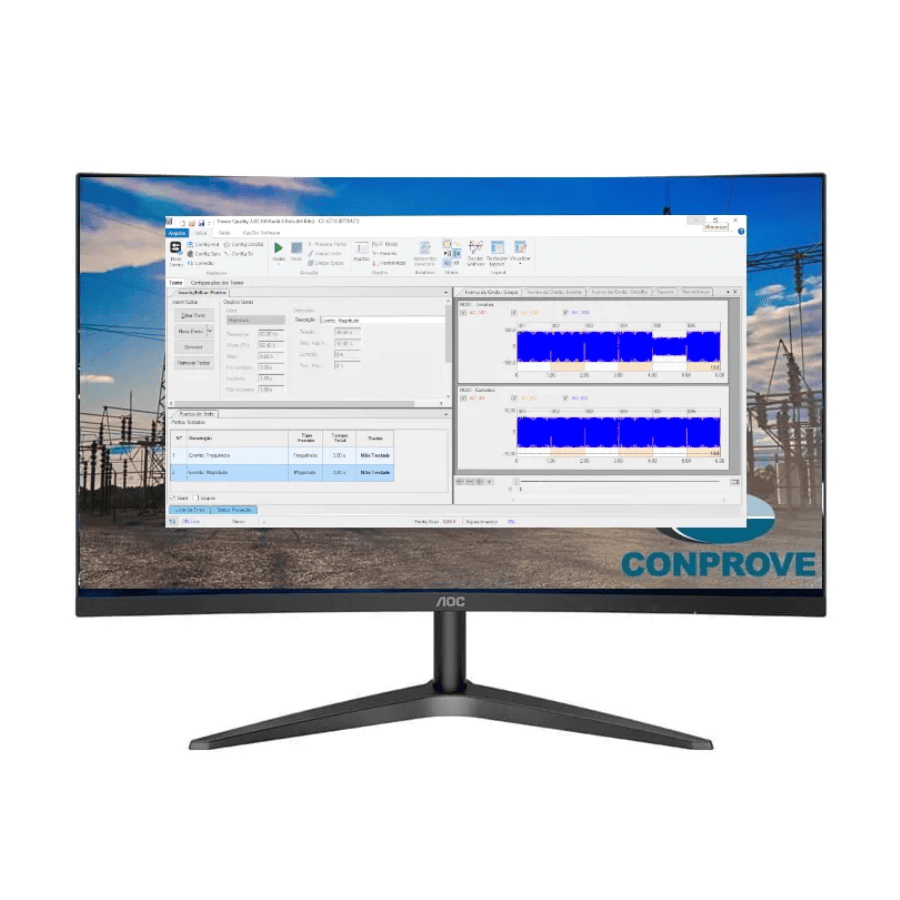

The CE-6707 and CE-6710 universal testers developed by Conprove offer exceptional precision and flexibility in signal generation. They are controlled via the CTC – Conprove Test Center, a software platform that integrates all Conprove equipment features, providing a user-friendly interface and advanced graphical analysis tools.

Key features for analyzer testing include:

  • Signal generation with harmonic and interharmonic components: up to the 50th order, at 50 Hz or 60 Hz;
  • Arbitrary waveform creation: sine, square, triangular, or custom shapes;
  • Import of real oscillographs: faithful reproduction of COMTRADE and ATP files, allowing simulation of real disturbances;
  • Definition of signals using symmetrical components: useful for voltage and current unbalance studies;
  • Automated testing: full test sequences with report generation.

Recommended Conprove Equipment

  • CE-6707: Versatile and portable equipment with excellent cost-benefit ratio. Ideal for quick and precise testing of meters, transducers, relays, and other components, both in the field and in the lab.
  • CE-6710: A complete test platform with multiple analog and digital I/Os, enabling a wide range of tests with high performance and metrological accuracy.
  • CTC – Conprove Test Center: Software platform integrating all features of Conprove equipment, offering user-friendly operation and advanced analysis tools.

Typical Applications

  • Field and laboratory verification and calibration of power quality analyzers;
  • Compliance testing with technical standards and contract requirements;
  • Disturbance simulation for performance validation of analyzers;
  • Metrological certification testing;
  • Development and validation of new power quality monitoring devices.

Compliance with Standards and Regulations

Conprove’s equipment and software are developed to ensure precision and reliability, complying with national and international standards. These include guidelines for measuring power quality and analyzing disturbances, harmonics, and interharmonics. They are also aligned with utility requirements for approval and acceptance of measurement and monitoring instruments.

  • IEC 61000-4-30 – Power quality measurement techniques
  • IEC 61000-4-7 – Measurement of harmonic and interharmonic content
  • IEEE 1159 – Recommended practices for monitoring power quality disturbances
  • Utility-specific standards for equipment approval and certification

Recommended Solutions:

Conprove develops and manufactures a complete line of equipment and software for testing, automation, commissioning, and maintenance of electric power systems. Our products meet the demands for protection relay testing, electrical system simulations, communication protocol analysis, IEC 61850 standard compliance testing, and other essential applications for utilities, industries, engineering companies, and educational institutions. With 100% Brazilian technology, specialized technical support, and continuous innovation, Conprove is a benchmark in reliable, robust, and high-precision solutions for the power sector.
