    Digital test set & analizer for IEC 61850 systems

    Categories: , ,

    Description

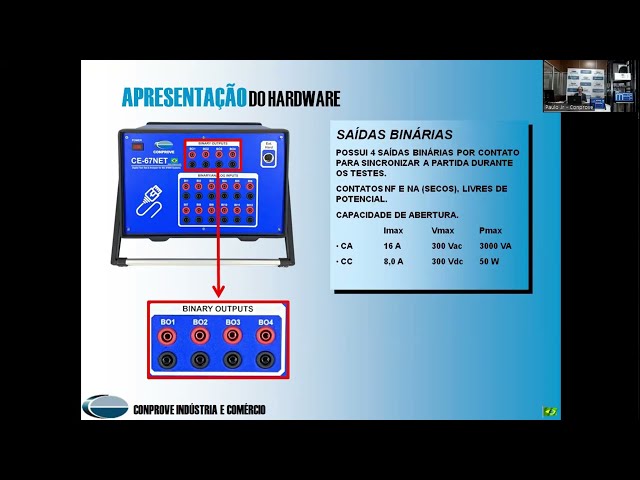

    The CE-67NET is a versatile tool that encompasses several functionalities in a single equipment for testing the electrical system. This portable instrument, ideal both for the field and for the laboratory, is capable of publish and subscribe to GOOSE and Sampled Value messages of the IEC 61850 Standard, in addition to allowing temporal synchronization through the PTP protocol (IEEE 1588).

    This equipment was developed to perform network tests and diagnostics in digital substations based on the IEC 61850 standard. It has monitoring modes that capture the substation network traffic and analyze the packets that are circulating through it. In this way, the messages captured by the instrument make it possible to troubleshoot the network: performing statistical analyses, detecting problems and delays in packets, evaluating the synchronization of messages through the Grandmaster’s PTP packets, checking for lost or unsent messages, detecting the presence of orphans, and evaluating the overall performance of the substation process bus.

    In addition to using the CE-67NET for network diagnostics, the instrument can be used for tests on protection relays using the Sampled Value (SV) and GOOSE protocols. In this scenario, the test set manages to publish SV messages with variable magnitudes in the module, phase angle, and frequency for the voltage and current outputs, which can be independently adjusted. In addition, the SV output signal is continuous and is not interrupted by changing the settings of the applied magnitudes. In this way, the equipment allows tests in both permanent and dynamic conditions, in addition to allowing the measurement of timing and monitoring functions captured by subscribing to GOOSE messages sent by the IEDs or by binary/analog inputs directly on the case.

    We work with the sale and rental of this instrument, consult us.

    BENEFITS

    confiabilidade copiar

    Reliability

    Robust equipment, developed for the highest demands of field operation.

    custo beneficio copiar 1

    Cost benefit

    High technology equipment with the best cost benefit in the market.

    suporte tecnico copiar

    Technical support

    We make your life easier through specialized application support.

    multifuncional copiar

    Multifuncional

    Device allows testing on relays, transducers, meters, TC’s, TP’s, circuit breakers and power transformers.

    leve e compacto copiar

    Lightweight and Compact

    Equipment easy to handle and transport. Accompanying transport case with wheels.

    treinamento copiar

    Training

    Personalized and practical “hands-on” courses with a reduced number of participants.

    alta precisao copiar

    High precision

    Total generation control in current, voltage, angle, frequency and harmonics with high precision.

    medicoes copiar

    Measurements

    Functionality of power quality measurements and digital oscillographs already included.

    facil operacao copiar

    Easy Operation

    Developed for technicians and engineers, with easy use and quick learning.

    automatismo copiar

    Automation

    Automatic software for testing. Increased productivity with efficiency gain with reduced test time.

    plano de testes copiar

    Test Plan

    Save time by automating and performing all the tests you need at once!

    todos os reles copiar

    All Relays

    Test from electromechanical relays with high burden to the most technological IED’s.

    sincronizacao copiar

    Synchronization

    Enables time synchronization by: GPS; IRIG; PPS and IEEE 1588 (PTP).

    instrumentacao virtual copiar

    Virtual Instrumentation

    Highly friendly and intuitive software, with a wide variety of applications for all needs.

    versatilidade copiar

    Versatility

    Performs the most diverse tests, from the most basic functions to the most advanced.

    tradicao copiar

    Tradition

    Company with 36 years of history. Fifth generation of test equipment.

    guias de aplicacoes copiar

    Application Guide

    It has tutorials and video classes with the most diverse applications.

    smartgrid copiar

    Smartgrid

    Perfect solution for smartgrid testing and distributed generation.

    templates copiar

    Templates

    Ready models according to the functionality of each differential or distance relay.

    relatorios copiar

    Report

    All software generates automatic reports that can be saved in PDF or Word®.

    multi idioma copiar

    Multi Language

    Software and test reports configured in: Portuguese, English or Spanish.

    Downloads

    Control Software

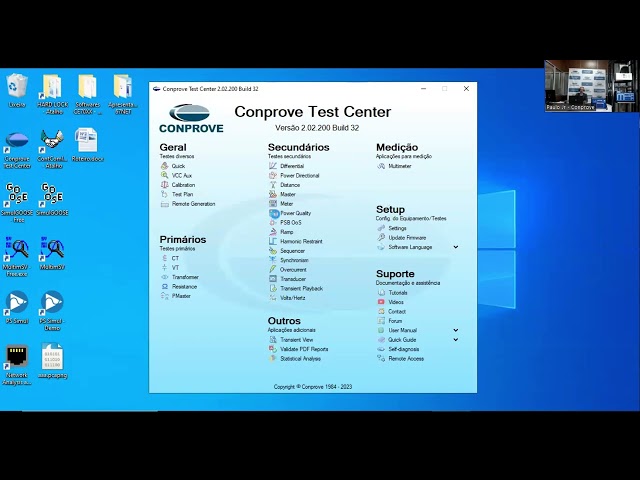

    The control of the test set is done through the software Conprove Test Center “CTC”. In it, the user has access to several applications for manual and automatic tests of the main functions of protection of relays, meters, transducers, current transformers, voltage transformers, power transformers and circuit breakers.There are millions of lines of code to make your job easier.

    ctc transparente

    Network Diagnostic Software

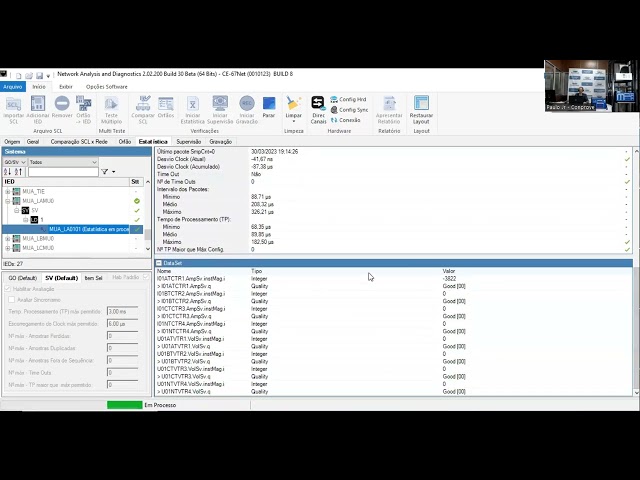

    Fully graphical software for communication network diagnostics, in its most current version, with user interface in Brazilian Portuguese. Fully compatible with the Test Unit and with the Microsoft Windows 10 and 11 operating system in 64bits. Is able to:
