Description

CE – CSB1

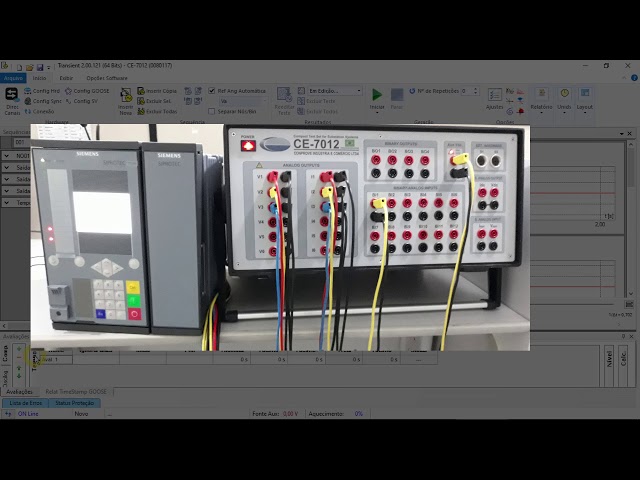

The CE-CSB1 is a lightweight and compact device that connects the test set to relays or meters equipped with Low Power Current Transducers (LPCT) and Low Power Voltage Transducers (LPVT) inputs (low-amplitude analog signals), simulating the generation of low-level voltages and currents.

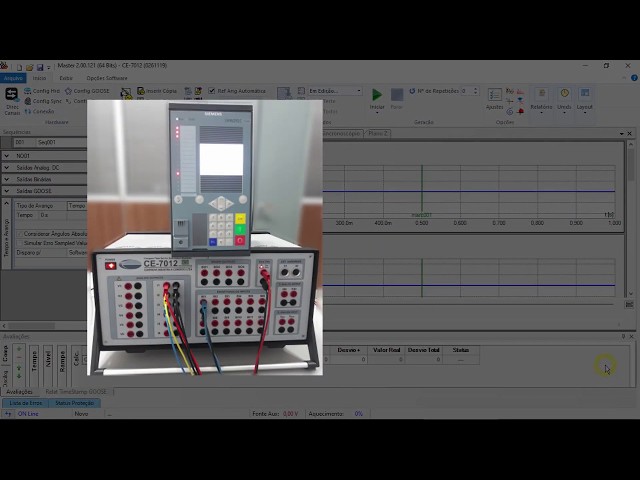

It enables direct testing of devices that receive these voltage and current signals from non-conventional instrument transformers (NCIT), just as is done with traditional devices.

Examples of sensors that can be simulated:

– Rogowski coil;
– Hall effect transducers;
– Low-power magnetic transformers;
– Capacitive, resistive, or combined voltage dividers;
– Electronic transformers with analog output;

The phase shift of the simulated signals can be controlled to match proportional sensors (0°), derivative sensors (90°), or user-defined settings.

Complies with IEC 60044-7/8 and IEC 61869-6/7/8/9/10/11 standards.

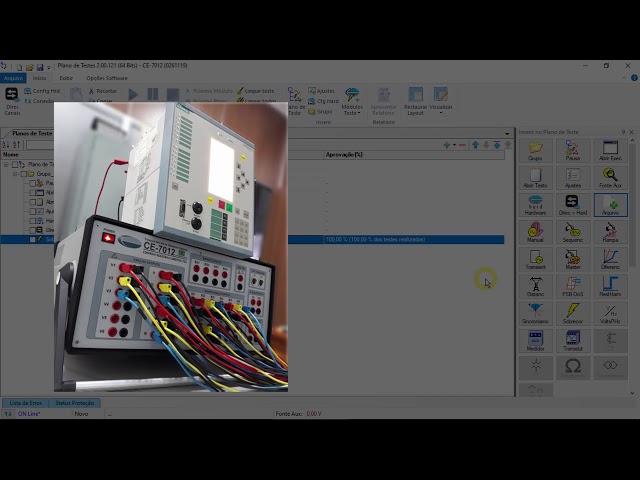

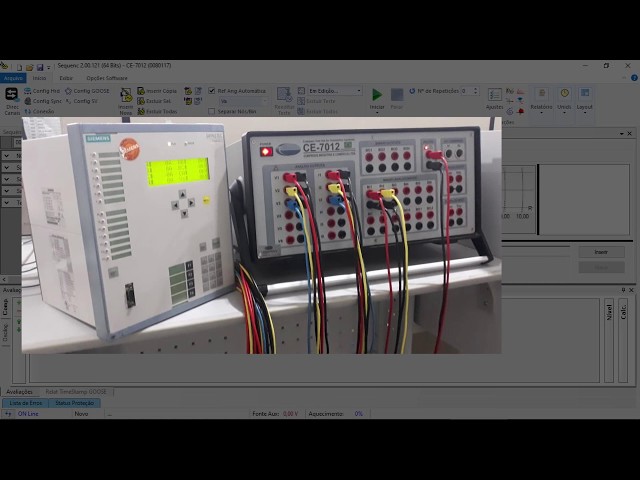

Examples of compatibility with relays and meters:

– Schneider, SEPAM series 20, 40, and 80;
– ABB: REF601, REM601, REF615, REM615;
– Siemens: 7Sx81;
– Fanox: SIL-A;
– Thytronic: NA11;
– SEL: 735 and 2414;
– ABB: REF54x*, REM54x*, REX521*, and REC523*;
*Requires optional cable, sold separately.
