Description
The CE-7012 is a versatile tool that includes several functionalities in a single equipment for testing the electrical system. This portable instrument, ideal for both field and laboratory, is capable of testing / calibrating / gauging the most diverse types of equipment, whether at primary or secondary levels.
At primary levels it can be used to test current transformers (CT), potential transformers (VT), switches, disconnectors, circuit breakers, grounds and power transformers.
For secondary levels it can be used to test relays: electromechanical, static or microprocessed. Due to its high precision in signal generation, it is used to measure transducers and power quality analyzer. Another feature is in the circuit breaker oscillography.
It has 6 current channels and 6 voltage channels with high precision for carrying out the most different tests. Being totally controlled by software (virtual instrumentation), allowing manual and automatic tests. It uses Digital Signal Processing (DSP) to create waveforms, allowing frequencies up to 3 KHz continuously.
Performs transformation ratio tests (TTR), measures winding resistance, contact resistance (Microhmmeter) and insulation resistance (Megometer). Lift the saturation curve of CT’s and check the polarity automatically.
With software solutions for testing the most different protection relay functions: Overcurrent, Differential, Distance, Directional, Negative Sequence, Over and Under Frequency, Over and Under Voltage, among others. With automatic creation of test reports and comparison with their characteristics in order to indicate whether the result is approved.
Performs IED’s tests with the IEC-61850 / IEC-61869 standards protocol receiving and sending GOOSE and Sampled Value (SV) messages. Compares the times between traditional contact (rigid copper wiring) and sending the event via ethernet network via GOOSE msg. Allowing the testing of any protection function using msg’s GOOSE. Evaluates possible differences between the analog signal and the SV msg.
Ideal for use in factory acceptance tests (TAF) and field acceptance tests (TAC).
We work with the sale and rental of this instrument, consult us.
BENEFITS
Reliability
Robust equipment, developed for the highest demands of field operation.
Cost benefit
High technology equipment with the best cost benefit in the market.
Technical support
We make your life easier through specialized application support.
Multifuncional
Device allows testing on relays, transducers, meters, TC’s, TP’s, circuit breakers and power transformers.
Lightweight and Compact
Equipment easy to handle and transport. Accompanying transport case with wheels.
Training
Personalized and practical “hands-on” courses with a reduced number of participants.
High precision
Total generation control in current, voltage, angle, frequency and harmonics with high precision.
Measurements
Functionality of power quality measurements and digital oscillographs already included.
Easy Operation
Developed for technicians and engineers, with easy use and quick learning.
Automation
Automatic software for testing. Increased productivity with efficiency gain with reduced test time.
Test Plan
Save time by automating and performing all the tests you need at once!
All Relays
Test from electromechanical relays with high burden to the most technological IED’s.
Synchronization
Enables time synchronization by: GPS; IRIG; PPS and IEEE 1588 (PTP).
Virtual Instrumentation
Highly friendly and intuitive software, with a wide variety of applications for all needs.
Versatility
Performs the most diverse tests, from the most basic functions to the most advanced.
Tradition
Company with 36 years of history. Fifth generation of test equipment.
Application Guide
It has tutorials and video classes with the most diverse applications.
Smartgrid
Perfect solution for smartgrid testing and distributed generation.
Templates
Ready models according to the functionality of each differential or distance relay.
Report
All software generates automatic reports that can be saved in PDF or Word®.
Multi Language
Software and test reports configured in: Portuguese, English or Spanish.
BENEFITS IN PRIMARY TESTS
Current Transformer
Analyzes transformation ratio, winding resistance, saturation curve and more …
Potential Transformer
Check transformation ratio, polarity, burden test and more …
Power Transformer
Analyzes transformation ratio, ohmic measurement, checking angular lag and more …
Circuit breaker
Checks switching times for poles and auxiliary contacts, contact resistance and more …
Quick Results
Performs the study very efficiently due to the high speed of the tests.
Field Testing
Light, portable and resistant equipment, ideal for field or laboratory tests.
High Current
Light, portable and resistant equipment, ideal for field or laboratory tests.
Illustrative Setup
Graphic diagrams of test cable connections.
IEC 61850 / IEC 61869-9
Non-conventional CT and TP tests.
Substations
Ideal for commissioning and maintenance of substation assets.
Safe Operation
Equipment developed with several protections to avoid any damage.
Multi Systems
Perform tests on two three-phase systems simultaneously.
Multifunctional
Replaces several individual test devices.
Downloads
Control Software

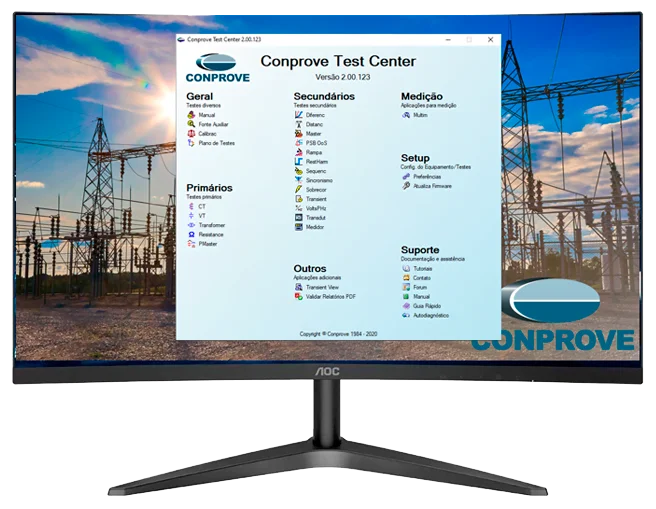

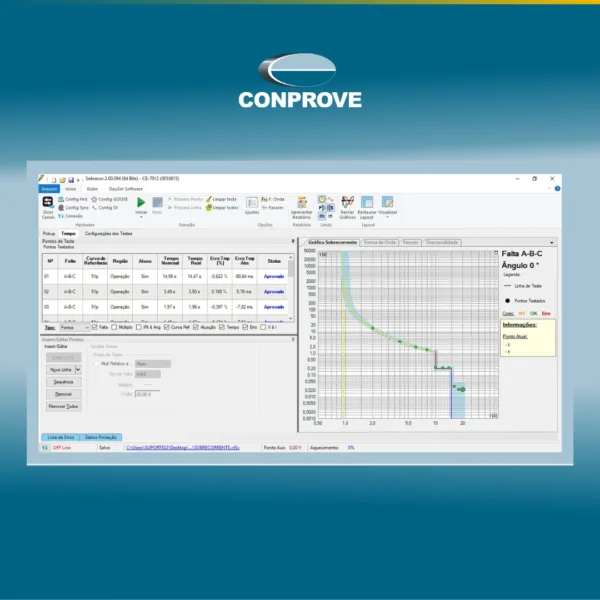

The control of the test set is done through the software Conprove Test Center “CTC”. In it, the user has access to several applications for manual and automatic tests of the main functions of protection of relays, meters, transducers, current transformers, voltage transformers, power transformers and circuit breakers.
