Description
The CE-6710 is a versatile tool that includes several functionalities in a single equipment for testing the electrical system. This portable instrument, ideal for both field and laboratory, is capable of testing / calibrating / gauging the most diverse types of equipment at secondary levels.

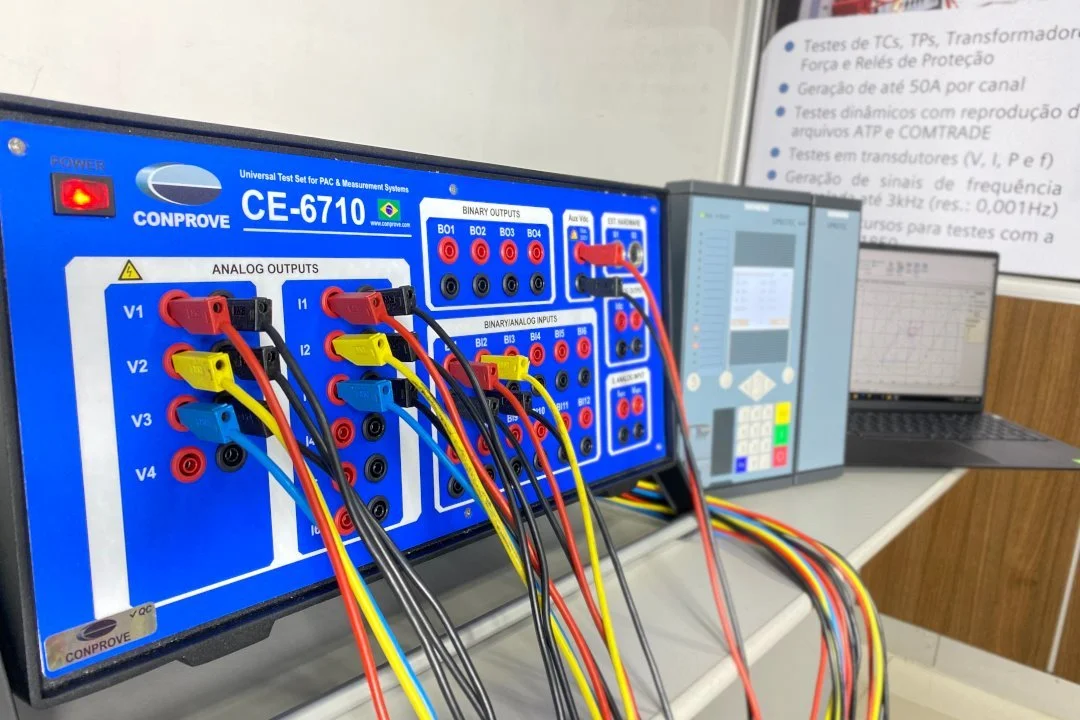

For secondary levels it can be used to test relays: electromechanical, static or microprocessed. Due to its high precision in signal generation, it is used to measure transducers, meters and power quality analyzer. Another feature is in the circuit breaker oscillography.

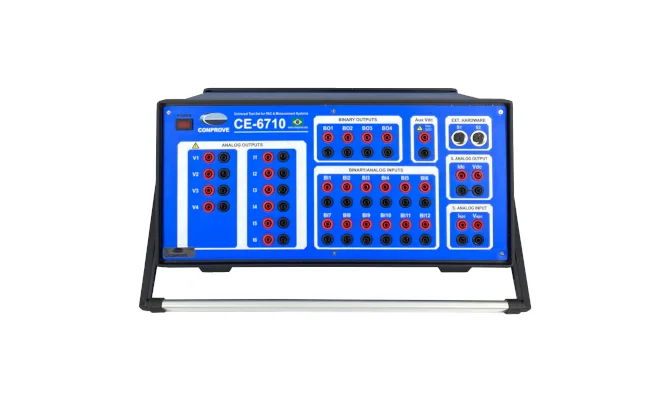

It has 6 current channels and 4 high precision voltage channels for carrying out the most different tests. Being totally controlled by software (virtual instrumentation), allowing manual and automatic tests. It uses Digital Signal Processing (DSP) to create waveforms, allowing frequencies up to 3 KHz continuously.
Performs IED’s tests with the IEC-61850 / IEC-61869 standards receiving and sending GOOSE and Sampled Value (SV) messages. Compares the times between traditional contact (rigid copper wiring) and sending the event via ethernet network via GOOSE msg. Allowing the testing of any protection function using msg’s GOOSE. Evaluates possible differences between the analog signal and the SV msg.
Ideal for use in factory acceptance tests (TAF) and field acceptance tests (TAC).
We work with the sale and rental of this instrument, consult us.
BENEFITS
Reliability
Robust equipment, developed for the highest demands of field operation.
Cost benefit
High technology equipment with the best cost benefit in the market.
Technical support
We make your life easier through specialized application support.
Multifuncional
Device allows testing on relays, transducers, meters, TC’s, TP’s, circuit breakers and power transformers.
Lightweight and Compact
Equipment easy to handle and transport. Accompanying transport case with wheels.
Training
Personalized and practical “hands-on” courses with a reduced number of participants.
High precision
Total generation control in current, voltage, angle, frequency and harmonics with high precision.
Measurements
Functionality of power quality measurements and digital oscillographs already included.
Easy Operation
Developed for technicians and engineers, with easy use and quick learning.
Automation
Automatic software for testing. Increased productivity with efficiency gain with reduced test time.
Test Plan
Save time by automating and performing all the tests you need at once!
All Relays
Test from electromechanical relays with high burden to the most technological IED’s.
Synchronization

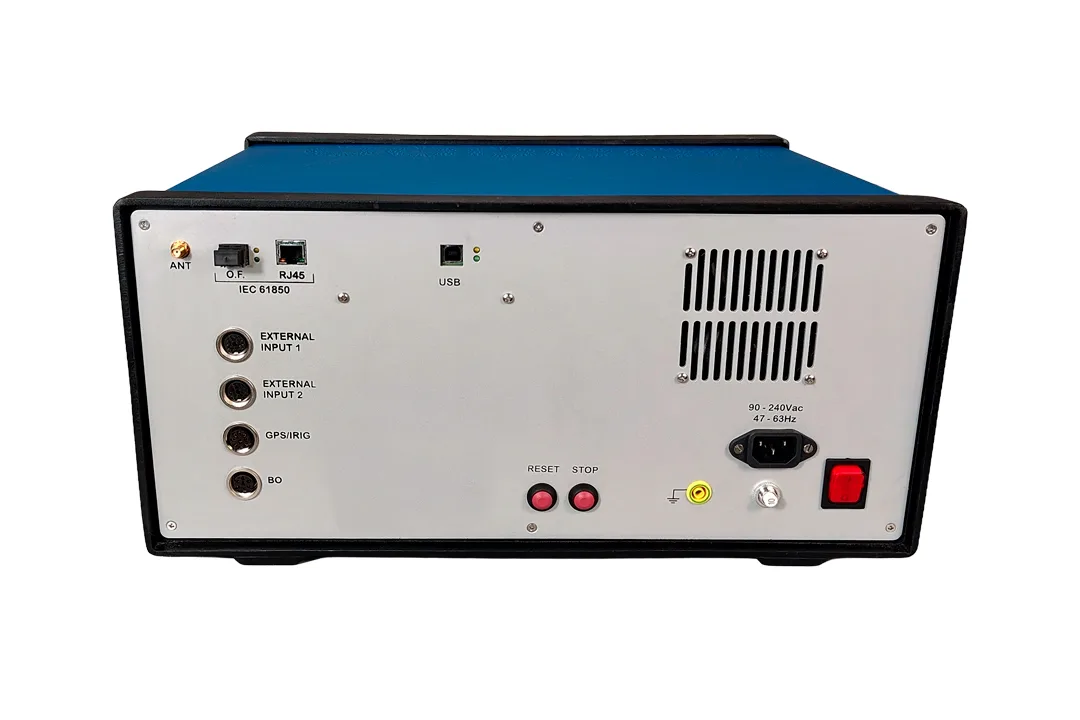

Enables time synchronization by: GPS; IRIG; PPS and IEEE 1588 (PTP).
Virtual Instrumentation
Highly friendly and intuitive software, with a wide variety of applications for all needs.
Versatility
Performs the most diverse tests, from the most basic functions to the most advanced.
Tradition
Company with 36 years of history. Fifth generation of test equipment.
Application Guide
It has tutorials and video classes with the most diverse applications.
Smartgrid
Perfect solution for smartgrid testing and distributed generation.
Templates
Ready models according to the functionality of each differential or distance relay.
Report
All software generates automatic reports that can be saved in PDF or Word®.
Multi Language
Software and test reports configured in: Portuguese, English or Spanish.
Downloads
Control Software
The control of the test set is done through the software Conprove Test Center “CTC”. In it, the user has access to several applications for manual and automatic tests of the main functions of protection of relays, meters, transducers, current transformers, voltage transformers, power transformers and circuit breakers. There are millions of lines of code to make your job easier.
Testimonials
In June 2020 I needed to buy a hexaphasic test set, and I had some imported equipment in mind, but after some research and some indications from friends and partners, I was referred to CONPROVE, a national company, I was a little afraid because it is a national company that maybe it wouldn't work with current technology, well, I made the decision to make the purchase with CONPROVE of a test set of the model CE-6710 and without a doubt it was the best choice I made, because I had already used other test sets from others imported manufacturers and after using CONPROVE's I found it very simple and practical, picking up very quickly the way to use the equipment and embedded with all current technologies in its software. Not to mention the company's after-sales service, which at all times I needed help and doubts, they always answered me immediately. So I recommend CONPROVE as a great company and they provide high quality equipment, I hope to buy another test set soon.
Ramon BayehBrval Electrical Service ltda“The Conprove CE-6006 test set surprised me by its simplicity of use, the commands and connections are intuitive even for users without prior training. The great advantage of Conprove products is the technical assistance that has always served us very well and promptly. ”
BRENO VENTORIM COMARELLATechnical Professional Petrobras - Electrical Maintenance UN-BC / ATP-MRL / MIED - Maintenance of Dynamic Equipment IntegrityConprove Engenharia has excellent courses and products. It has been our partner for some time, and whenever we need support, they are there for us. We use its products in our customers, and perfectly meets their needs. We at General West are very satisfied with the work.
Pedro Henrique Silva MendesGeneral WestConprove has followed my professional life since the beginning. Its equipments, with totally Brazilian technology, is an excellent work tool which provides me with the correct performance of the relay tests. In addition to having a team with extraordinary technical support, performed excellent advice. I followed its evolution from the test set of the CE-500 to the CE-7012. As if that weren't enough, its software has a huge performance, both for primary tests, applied to equipment, as well as for secondary tests, applied on relays. In this way, I guarantee, confirm and approve your products.
Fabrício TristãoProgressul
Proven Quality
– Integration with the supply chain;
– Good practices of individual and environmental management in the handling of components and PCBs;
– Compliance and security testing (IEC 61000-4-x, CISPR 16-x, IEC 60068-2-x, IEC 61326 e IEC 61010);
– High durability transport case (MIL-STD 810F, FED-STD-101C e ATA 300);
– Own laboratory containing world-class measurement standards with traceability to the RBC (Brazilian Calibration Network);
– Rigorous software-assisted quality control;
– Issuance of a calibration certificate with traceability to the RBC.
