Description

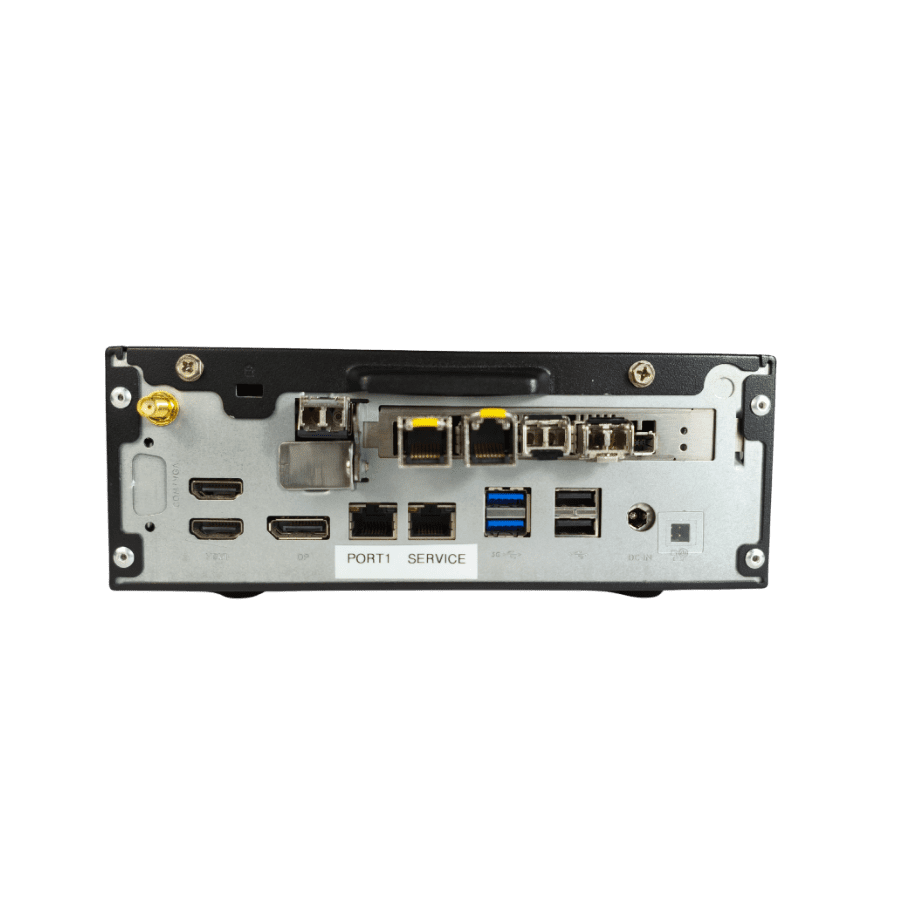

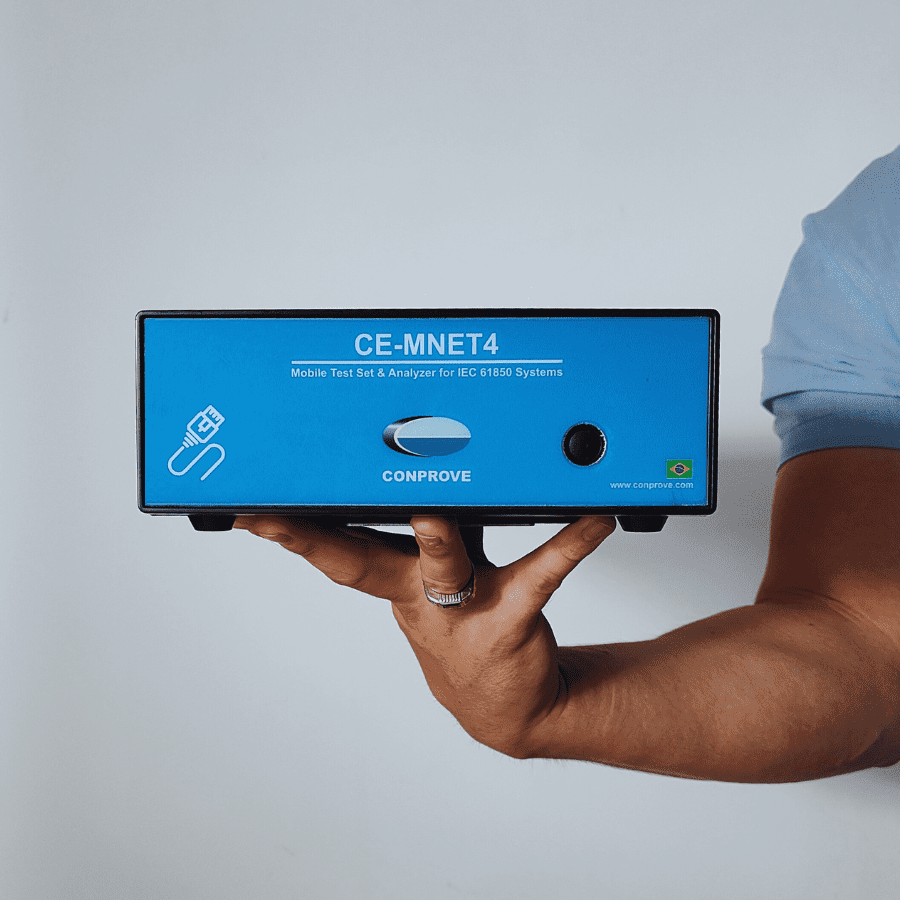

The CE-MNET4 is a versatile tool that encompasses several functionalities in a single equipment for testing the electrical system. This portable instrument, ideal both for the field and for the laboratory, is capable of publish and subscribe to GOOSE and Sampled Value messages of the IEC-61850 / IEC-61869 standards, in addition to allowing temporal synchronization through the PTP protocol (IEEE 1588).
This equipment was developed to perform network testing and diagnostics in digital substations based on the IEC-61850 / IEC-61869 standards. It has monitoring modes that capture the substation network traffic and analyze the packets that are circulating through it. In this way, the messages captured by the instrument make it possible to troubleshoot the network: performing statistical analyses, detecting problems and delays in packets, evaluating the synchronization of messages through the Grandmaster’s PTP packets, checking for lost or unsent messages, detecting the presence of orphans, and evaluating the overall performance of the substation process bus.
In addition to using the CE-MNET4 for network diagnostics, the instrument can be used for tests on protection relays using the Sampled Value (SV) and GOOSE protocols. In this scenario, the test set manages to publish SV messages with variable magnitudes in the module, phase angle, and frequency for the voltage and current outputs, which can be independently adjusted. In addition, the SV output signal is continuous and is not interrupted by changing the settings of the applied magnitudes. In this way, the equipment allows tests in both permanent and dynamic conditions, in addition to allowing the measurement of timing and monitoring functions captured by subscribing to GOOSE messages sent by the IEDs.
We work with the sale and rental of this instrument, consult us.
BENEFITS
Reliability
Robust equipment, developed for the highest demands of field operation.
Cost benefit
High technology equipment with the best cost benefit in the market.
Technical support
We make your life easier through specialized application support.
Multifuncional
Device allows testing on relays, transducers, meters, TC’s, TP’s, circuit breakers and power transformers.
Lightweight and Compact
Equipment easy to handle and transport. Accompanying transport case with wheels.
Training
Personalized and practical “hands-on” courses with a reduced number of participants.
High precision
Total generation control in current, voltage, angle, frequency and harmonics with high precision.
Measurements
Functionality of power quality measurements and digital oscillographs already included.
Easy Operation
Developed for technicians and engineers, with easy use and quick learning.
Automation
Automatic software for testing. Increased productivity with efficiency gain with reduced test time.
Test Plan
Save time by automating and performing all the tests you need at once!
All Relays
Test from electromechanical relays with high burden to the most technological IED’s.
Synchronization
Enables time synchronization by: GPS; IRIG; PPS and IEEE 1588 (PTP).
Virtual Instrumentation
Highly friendly and intuitive software, with a wide variety of applications for all needs.
Versatility
Performs the most diverse tests, from the most basic functions to the most advanced.
Tradition
Company with 36 years of history. Fifth generation of test equipment.
Application Guide
It has tutorials and video classes with the most diverse applications.
Smartgrid
Perfect solution for smartgrid testing and distributed generation.
Templates
Ready models according to the functionality of each differential or distance relay.
Report
All software generates automatic reports that can be saved in PDF or Word®.
Multi Language
Software and test reports configured in: Portuguese, English or Spanish.
Downloads
Control Software
The control of the test set is done through the software Conprove Test Center “CTC”. In it, the user has access to several applications for manual and automatic tests of the main functions of protection of relays, meters, transducers, current transformers, voltage transformers, power transformers and circuit breakers.There are millions of lines of code to make your job easier.
Network Diagnostic Software

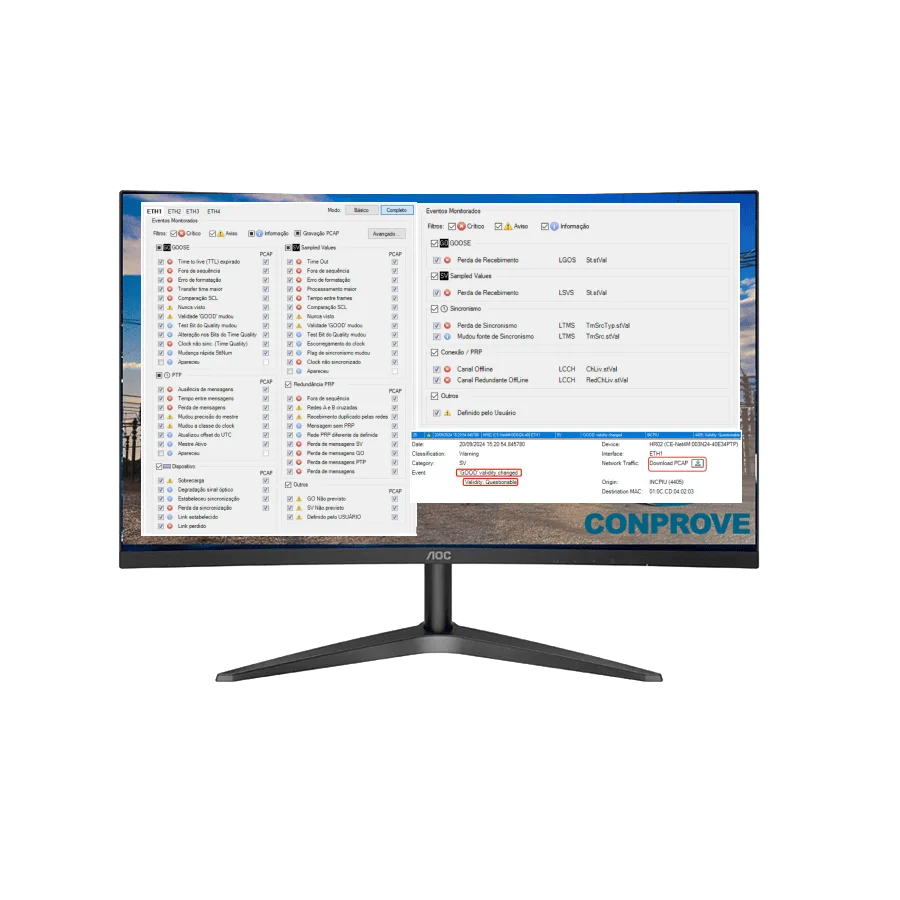

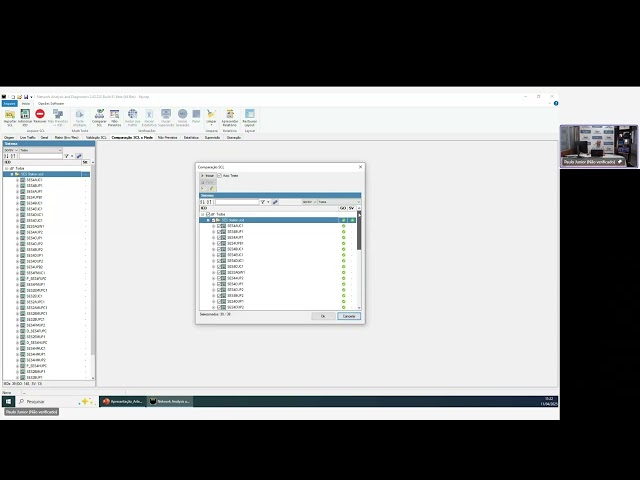

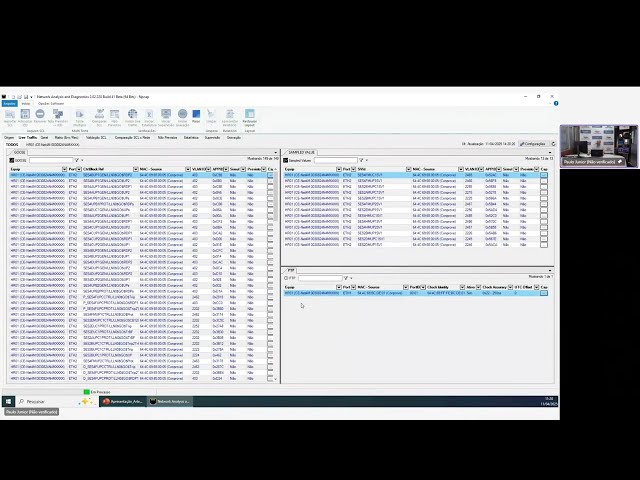

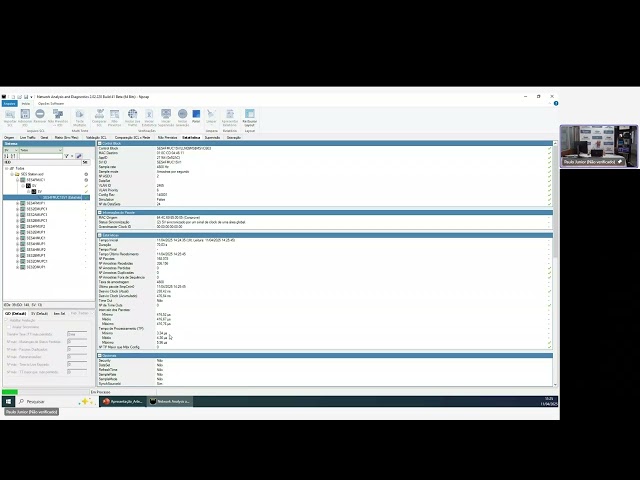

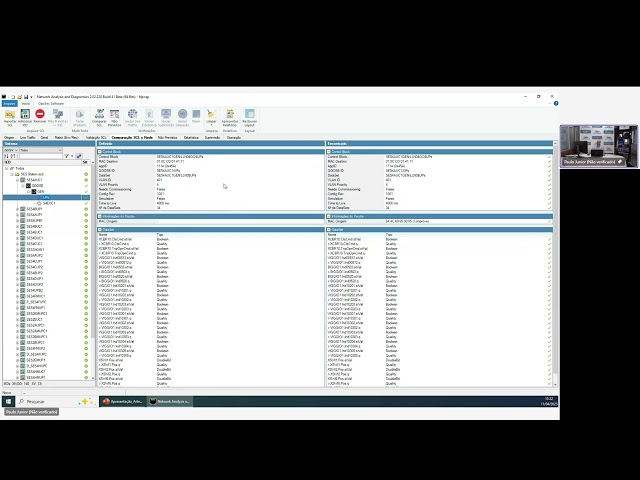

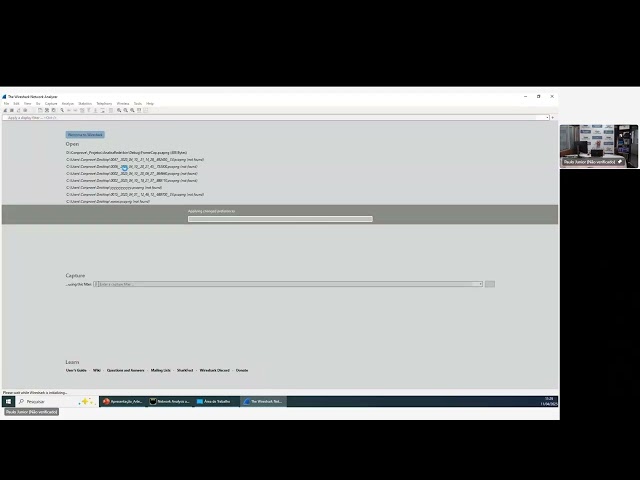

Fully graphical software for communication network diagnostics, in its most current version, with user interface in Brazilian Portuguese. Fully compatible with the Test Unit and with the Microsoft Windows 10 and 11 operating system in 64bits. Is able to:
- Check IEC 61850 communication;
- Examine network traffic;
- Evaluate message performance;
- Import SCL (System Configuration Language) files from the IEC 61850 standard;
- Perform statistical analysis of GOOSE and Sampled Value messages;
- Detect and flag messages on the network with parameters different from the configuration files;
- Detect and signal the absence of expected messages;
- Detect and signal the presence of unforeseen messages;
- Detect and flag issues in GOOSE, SV, and PTP messages;
- Capture messages from the network;
